overview

VVDN stands out as a recognized leader in PCB assembly, leveraging automated high-speed SMT lines to offer clients turnkey PCB assembly services, which include component sourcing, PCB assembly, functional testing, and final delivery. Today, we support PCB assembly from initial prototyping to low and ultra-high-volumes. Our PCB assembly capabilities lie in assembling complex PCB boards with small passive components such as 01005, BGA's with a lower pitch of 0.35mm, PLCC, FPGA, QFN, Bare dies, OSC, and other leadless package parts. With scrutinized systems for batch production and 100% component traceability, our PCB assembly process ensures the best quality of finished products to customers across the globe.

Salient Features

  • World-Class Automated SMT Lines
  • Clean room floors with ISO 14001
  • Supports 50mm x 50mm up to 850mm x 560mm maximum PCB size
  • Precision Placement- 01005 metric to 200x125x25 to Chip On Board
  • Robust Inspection: In-Line 3D AOI and 3D SPI
  • High-Speed multi mounters rated total CPH 778500
  • Selective, robotic and wave soldering machine for PTH parts

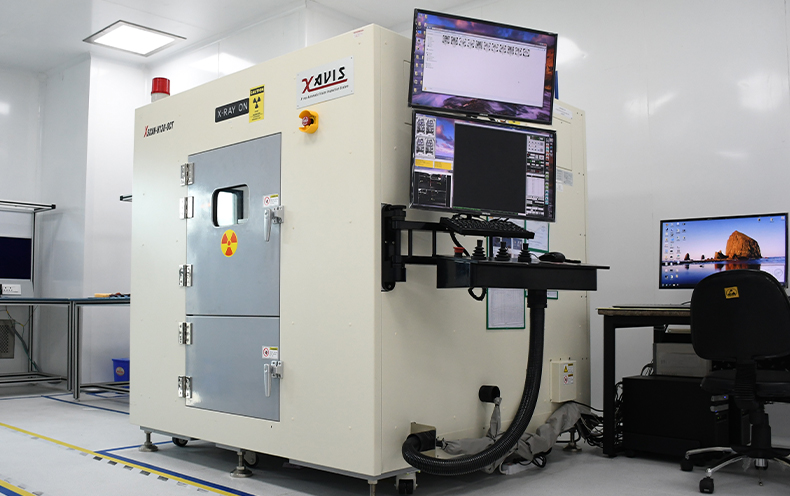

  • 2D and 3D X-Ray Machine (AXI)
  • Functional test, In-circuit test (ICT), Flying Probe Test (FPT) and Burn in Test (BIT)

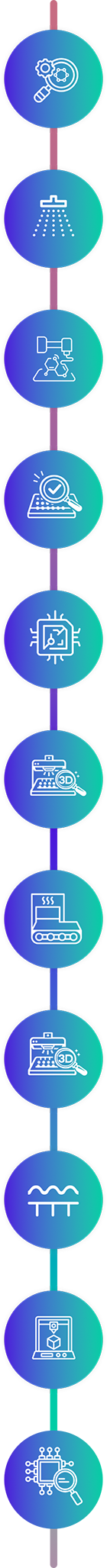

PCB Assembly Process

  • Stencil
    Preparation

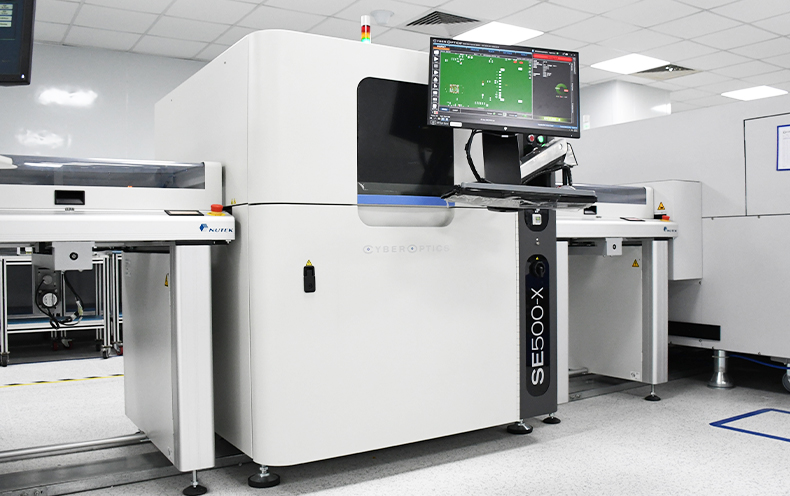

  • Solder Paste
    Inspection

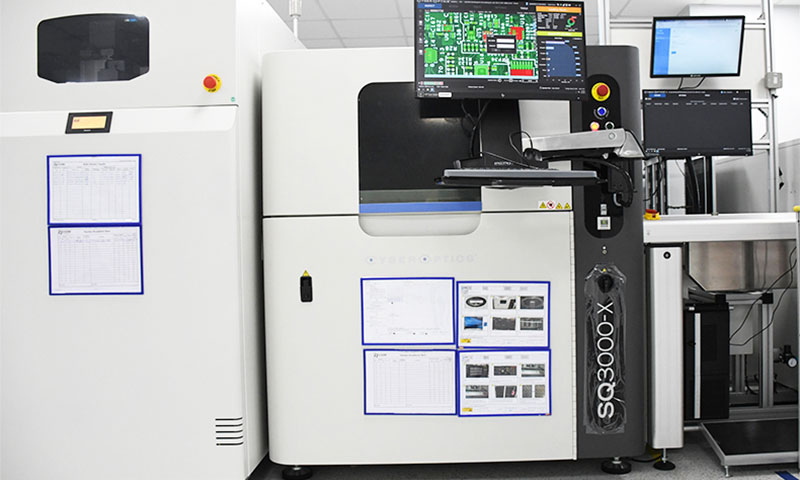

  • 3D AOI
  • 3D AOI
  • 3D AXI
  • Material Preparation
    & Examination
  • Solder Paste
    Printing

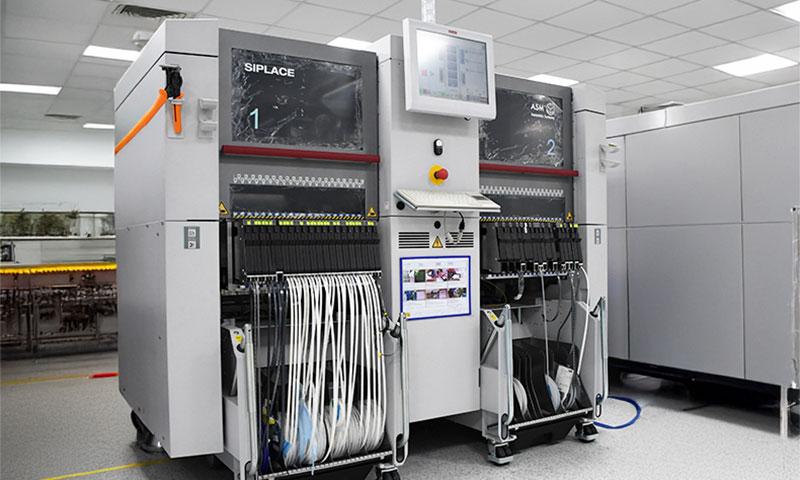

  • Chip Mounting

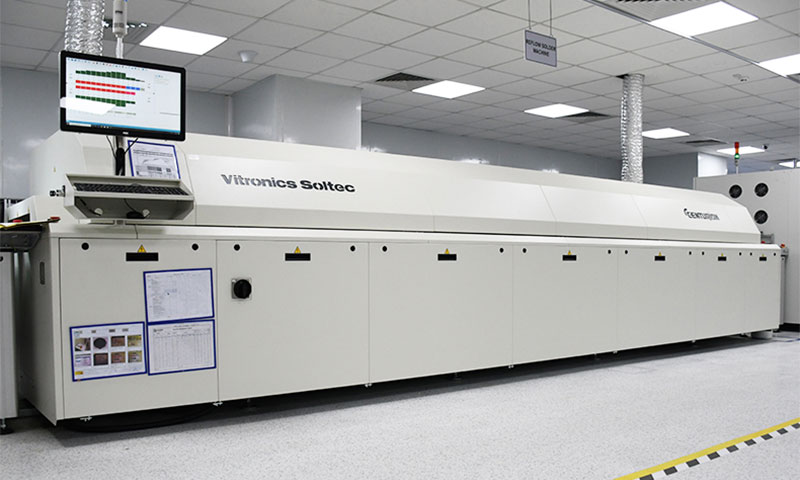

  • Reflow Oven
  • Wave Soldering for
    Through Hole
  • In Circuit
    Testing

World Class PCB Assembly and Testing Equipments
