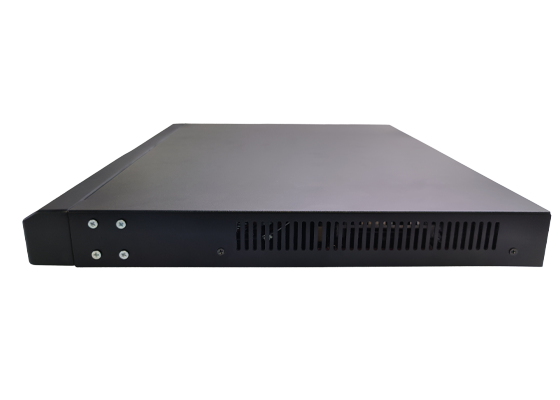

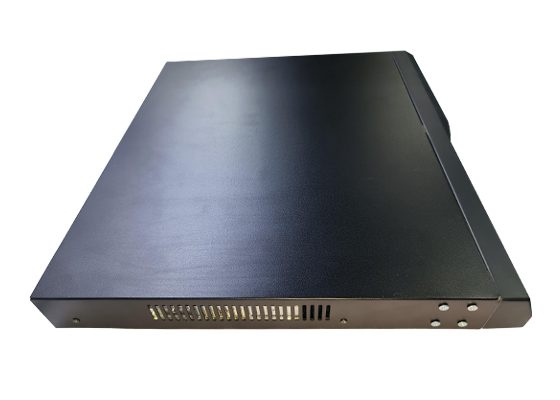

Intelligent Network Video Recorder (iNVR) is a production-ready Intel based reference design developed by VVDN Technologies. It is based on the Intel® Celeron/Core Platform series and is equipped with 4 GB of DDR4 RAM (upgradeable up to 32 GB) to accommodate different workloads and modularity. Additionally, the NVR supports real-time display, high-quality video recording and connectivity options, including Wi-Fi 6E and Bluetooth, for seamless data transfer over the cloud.

This solution is ideal for surveillance Original Equipment Manufacturers (OEMs) or System Integrators in search of an off-the-shelf NVR for various surveillance applications, such as Retail, Healthcare, Railways, Smart Cities, Transportation and Traffic Management. The Intelligent NVR is capable of running AI-based video analytics, object detection, object classification and other intelligent algorithms, allowing for more efficient and effective surveillance by reducing the dependency on manual monitoring.

Furthermore, the hardware of the Intelligent Network Video Recorder (iNVR), including SATA expansion and expandable PoE capabilities, can be upgraded according to end customer requirements with a quick turnaround time.

Features:

  • Based on Intel® Celeron/Core Platform
  • Scalable Platform
  • Modular Design
  • Cyber Secure
  • NDAA Compliant
  • EDGE AI-Enabled

Technical Specifications

Features Description
CPU
  • Intel® Celeron®/Intel® Core™ Platforms
Memory
  • DDR4 4 GB 512MX16 FBGA with Speeds upto 3200MT/s (Upgradeable upto 32 GB)
I/O Interface - Front
  • 1X USB3.1 Type A
  • Reset Button
  • Power Button
  • 2X LED Indicators
I/O Interface - Rear
  • 1X 1 GbE RJ45
  • 1X 2.5 GbE RJ45
  • 1X HDMI Port
  • 1X Type C (10 Gbps support) (Display port support)
  • 1X Type A USB3.2 Gen1 (5Gbps support)
  • 16X LAN Ports
  • 1X 250 V 10 A AC Power Socket
Connectivity
  • Wi-Fi 6E + BT (M.2 Key E)
Storage
  • 2x PCIe Based SSD(M.2 Key M)
  • 2x SATA Connector for HDD
Recording Resolution
  • 8 MP/ 6 MP/ 5 MP / 4 MP/ 3 MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF/ li>
Video Compression
  • Support H.265/ H.264
Video Input
  • Expandable upto 64 Channels
Video Output
  • 4K@60 HDMI and Type C (Display Port)
Operating System
  • Ubuntu 22.04.2 LTS/Windows
Dimensions (WXDxH)
  • 483 mm x 388 mm x 48 mm
Power
  • 150 Watts Onboard SMPS
Chassis
  • 1U
Operating Temperature
  • 0 °C to +50 °C

Target Applications

Security and
Surveillance
Healthcare
Smart City
Retail
Transportation and
Traffic Management

VVDN Offerings

Licensing Model

White Label

Mass
Manufacturing
