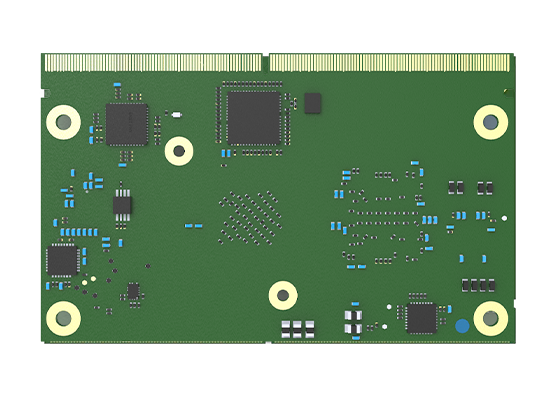

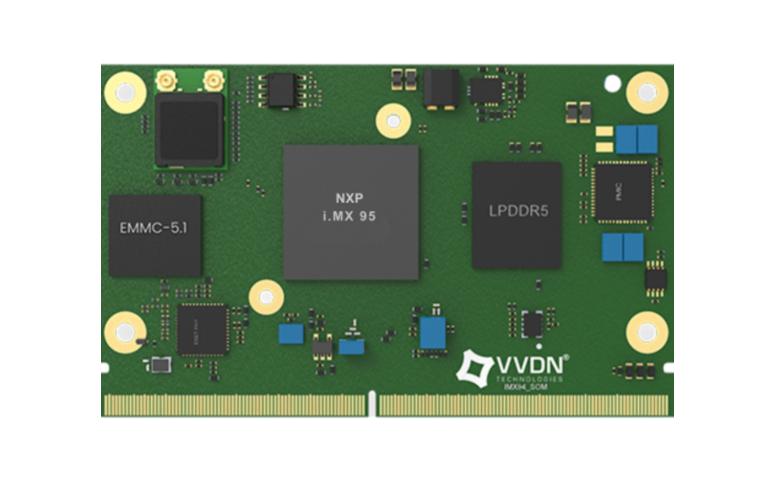

The VVDN i.MX 95 System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to deliver high-performance processing, real-time control, and advanced connectivity for next-generation industrial and smart applications.

Powered by the NXP i.MX 95 applications processor, the SoM integrates high-efficiency Arm® Cortex®-A cores along with real-time Cortex®-M cores, enabling a powerful combination of application processing and deterministic control. It supports AI/ML acceleration, advanced multimedia capabilities and secure edge computing, making it ideal for intelligent industrial systems.

Optimized for industrial automation, smart infrastructure, robotics, and edge AI applications, the i.MX 95 SoM provides enhanced performance, low latency, long-term reliability, and scalability in a compact and robust SMARC-compliant form factor.

Key Features:

6 x Cortex-A55 @1.8GHz ,1 x M33 core @333MHz, 1 x M7 core @800MHz
NPU with up to 2.0 TOPS Neural Network Performance
Up to 16 GB LPDDR5 Memory
Wi-Fi 6 & Bluetooth 5.4 Connectivity
Rich Industrial-Grade Connectivity & Interfaces
SMARC v2.1.1 Compatible SOM

Features	Specification
Processor	NXP i.MX 95 Applications Processor
Architecture	Multi-Core ARM-based SoC
Operating System	Linux (Yocto)
Memory	32-bit LPDDR5, 4 GB/ 8 GB/ 16 GB
Storage	eMMC 5.1 Flash, 32 GB to 128 GB
Wireless	Wi-Fi 6 (802.11ax), 2.4/5 GHz Dual-band, 1×1 Bluetooth 5.4
High Speed Interfaces	SD / SDIO / MMC ×1 PCIe Gen3 ×2 USB 3.0 Gen1 Host ×2 USB 2.0 Host ×2 USB 2.0 OTG ×1 Gigabit Ethernet ×2 USXGMII (10 Gb Ethernet) ×1 LVDS (4-lane) ×2 MIPI DSI (4-Lane) ×1 MIPI CSI (4-Lane) ×2
Low Speed Interfaces	CAN-FD ×2 I²S ×2 I²C ×5 SPI ×2 UART ×4 PWM ×3
Industrial Protocols	Modbus, Wired/Wireless HART, EtherNet/IP, BACnet, PROFIBUS and PROFINET, OPC UA
IoT Connectivity Protocols	MQTT, UDP, TCP/IP, FTP, Lightweight M2M (LwM2M), HTTPS
Dimensions	SMARC Standard (82 mm × 50 mm)
Operating Temperature	-40 °C to +85 °C

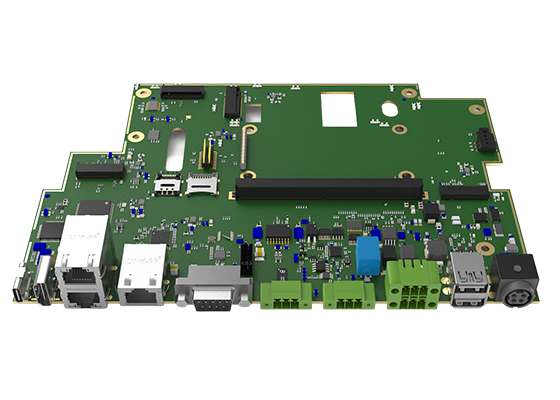

Features	Specification
SOM Compatibility	Compatible with All SMARC Form Factor SoM Modules
Extendable NPU Capability	Supports M.2 Key-M (PCIe Gen3 ×1 lane) AI Accelerators for Enhanced AI Processing
Extendable Memory	Pluggable M.2 Key-M SSD Slot (PCIe Gen3 ×1 lane)
Extendable Wireless Connectivity 1	Supports M.2 Key-B 5G / 4G Cellular Modems (USB 3.2 Gen1)
Extendable Wireless Connectivity 2	Supports Industrial-Grade LoRa Modules in M.2 Key-A Form Factor USB 2.0 Host ×1 SPI ×1
Display Port	HDMI 1.4b ×1
External Industrial Port (High Speed)	5 Gbps Ethernet ×1, RJ-45 Connector 1 Gbps Ethernet ×2, RJ-45 Connector
External Industrial Ports (Low Speed)	RS-485 ×1, Terminal Block CAN-FD ×2, Terminal Block HART ×1, Terminal Block
External Bus Interfaces	USB 3.2 Gen1 ×1, USB Type-A USB 2.0 ×1, USB Type-A RS-232 ×1, DB9 Connector
Industrial Protocols	Modbus, Wired/Wireless HART, EtherNet/IP, BACnet, PROFIBUS and PROFINET, OPC UA
IoT Connectivity Protocols	MQTT, UDP, TCP/IP, FTP, Lightweight M2M (LwM2M), HTTPS
Input Power	12 V/ 100 W, 4-Pin Industrial DIN Connector
Dimensions	215 × 146 × 1.6 mm
Operating Temperature	-40 °C to +85 °C

*Qualcomm QCS8250 is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Targeted Applications

VVDN i.MX 95 applications processor System-on-Module (SoM) is a compact, industrial-grade embedded computing platform designed to enable deterministic real-time control, secure edge intelligence and mission-critical industrial automation.

VVDN – NXP – i.mx 95 SoM

Key Features:

Technical Specifications

Targeted Applications

Building Management Systems (BMS)

Building Security and Surveillance

Motion Control & Robotics Controllers

Factory Automation Systems

Programmable Logic Controller (PLC) and Remote I/O

Industrial Human-Machine Interface (HMI)
