The demand for 5G low to mid power radio units is driven by the need for faster, more reliable, and low-latency networks, catering to a wide range of applications including M2M communication, IoT sensor data transfer, voice & video call over NR, robotics, unmanned drones, security surveillance and more. VVDN, with its 5+ years of experience in O-RAN based 5G NR products and solutions, offers a diverse range of micro and macro cells based on high performance silicon platforms enabling seamless connectivity and productivity enhancement for enterprise and industrial connectivity.

Our comprehensive capabilities span hardware, software and mechanical engineering, allowing us to design, develop and manufacture tailored 5G solutions. Our low power radio unit serves as a versatile reference design that can be customized to meet specific customer requirements.

Solution Highlights

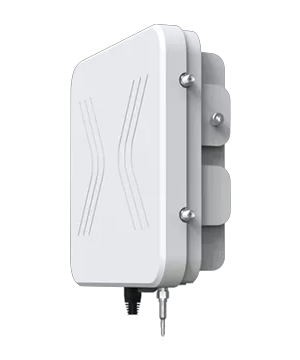

Low Power Radio Unit

Low Power Radio Unit

Reference Design
  • RF Output Power per Port: 250 mWatt/ 24 dBm
  • Dimension: 256X205X66 mm
  • Weight: <4 kg
  • Maximum Power: <51 W
Download Datasheet

Mid Power Radio Unit

Reference Design
  • RF Output Power per Port: 5 Watt/ 37 dBm
  • Dimension: 342x245x84 mm
  • Weight: <7 kg
  • Maximum Power: <180 W
Download Datasheet

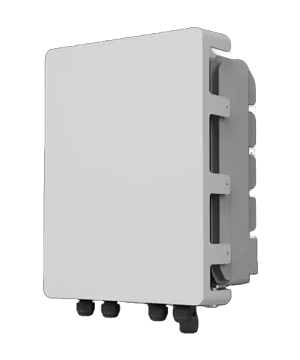

High Power Radio Unit Reference Design

Technical Specifications

Features Description
NR Radio Specification
  • Band n48, n77, n78, n79
    (3.4 - 3.6 GHz, 3.6 - 3.8 GHz, 3.55 - 3.7 GHz *CBRS, 3.8 - 4.2 GHz, 4.7 - 4.9 GHz)
  • Bandwidth(max): 100 MHz
  • Duplex Mode: TDD
  • Modulation: QAM 256/64/16/QPSK
  • Carriers: 1
  • MIMO: 4T4R
  • Antennas: Internal/ External
Specification Compliance
  • 3GPP Spec Compliance: Rel 15, Upgrading to Rel 16
  • O-RAN Compliance: V2, Upgrading to V6
Power Specification
  • Powering: PoE ++ Type 3 IEEE802.3bt
Environmental Specification
  • Indoor: -5 °C to +40 °C
  • Environmental: IP31/IP65
  • Mounting Style: Wall/ Pole/ Ceilings
Connectivity Specification
  • Physical: 10G Base-T Eth over SFP
  • Interface Protocol O-RAN Split 7-2 CAT-A
  • Time and Synchronization IEEE 1588v2, ITU T G.8275.1 & G.8275.2

Target Applications

Industrial 4.0
Security & Surveillance
Small & Medium-Sized Enterprises (SMEs)
Healthcare
Retail & Hospitality
Ports & Campuses
